Night Hawk Industrial Double Truss Shipping Container Canopy Shelter (60' × 40'), designed for robust storage and industrial use:

Key Features & Specifications

  • Frame & Structure

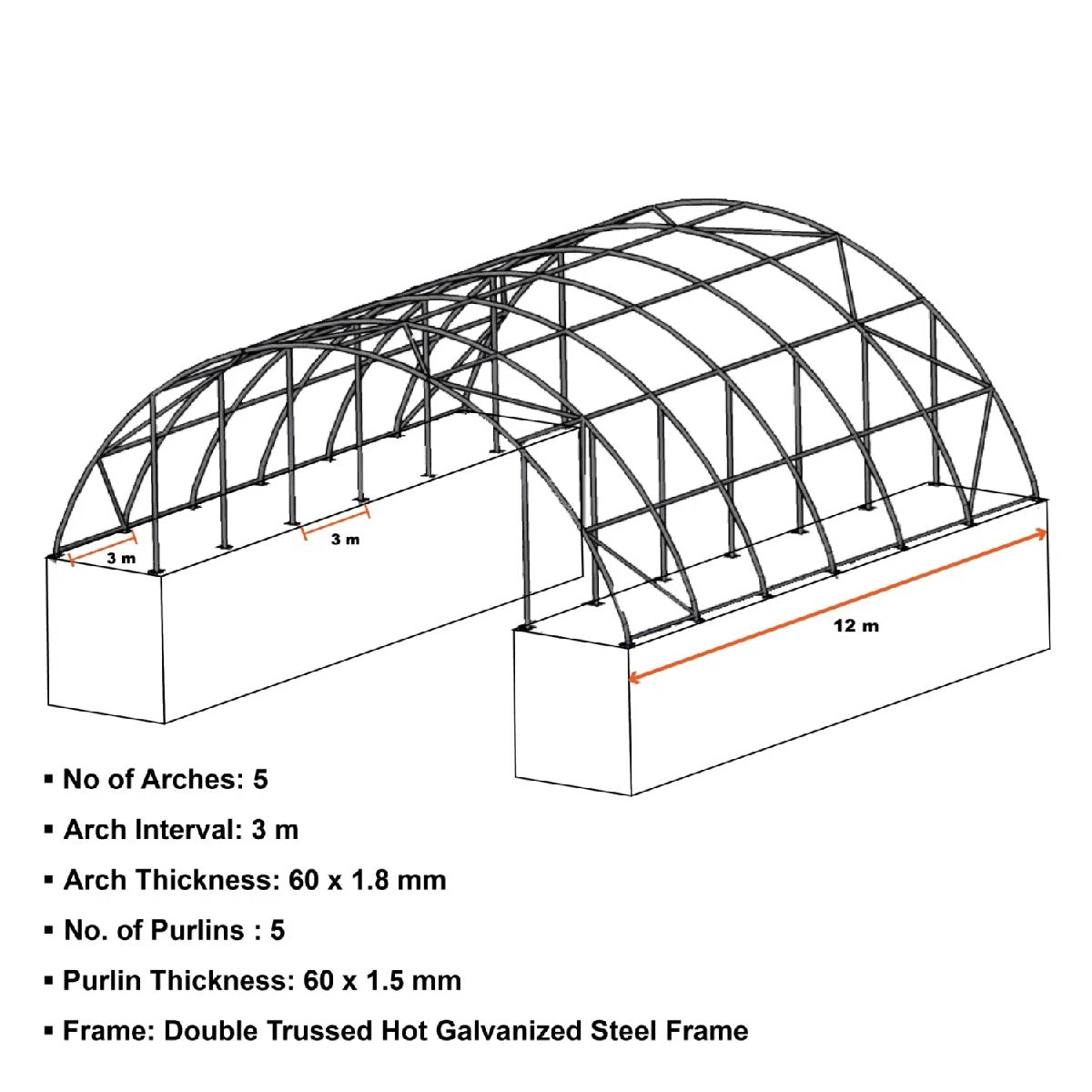

    Built with a double truss frame crafted from high-grade hot-dip galvanized steel for exceptional durability and extended longevity. Truss arches are spaced approximately 9.8 ft apart, with tube dimensions around Ø60 × 1.8 mm and purlins at Ø60 × 1.5 mm.

  • Dimensions & Capacity

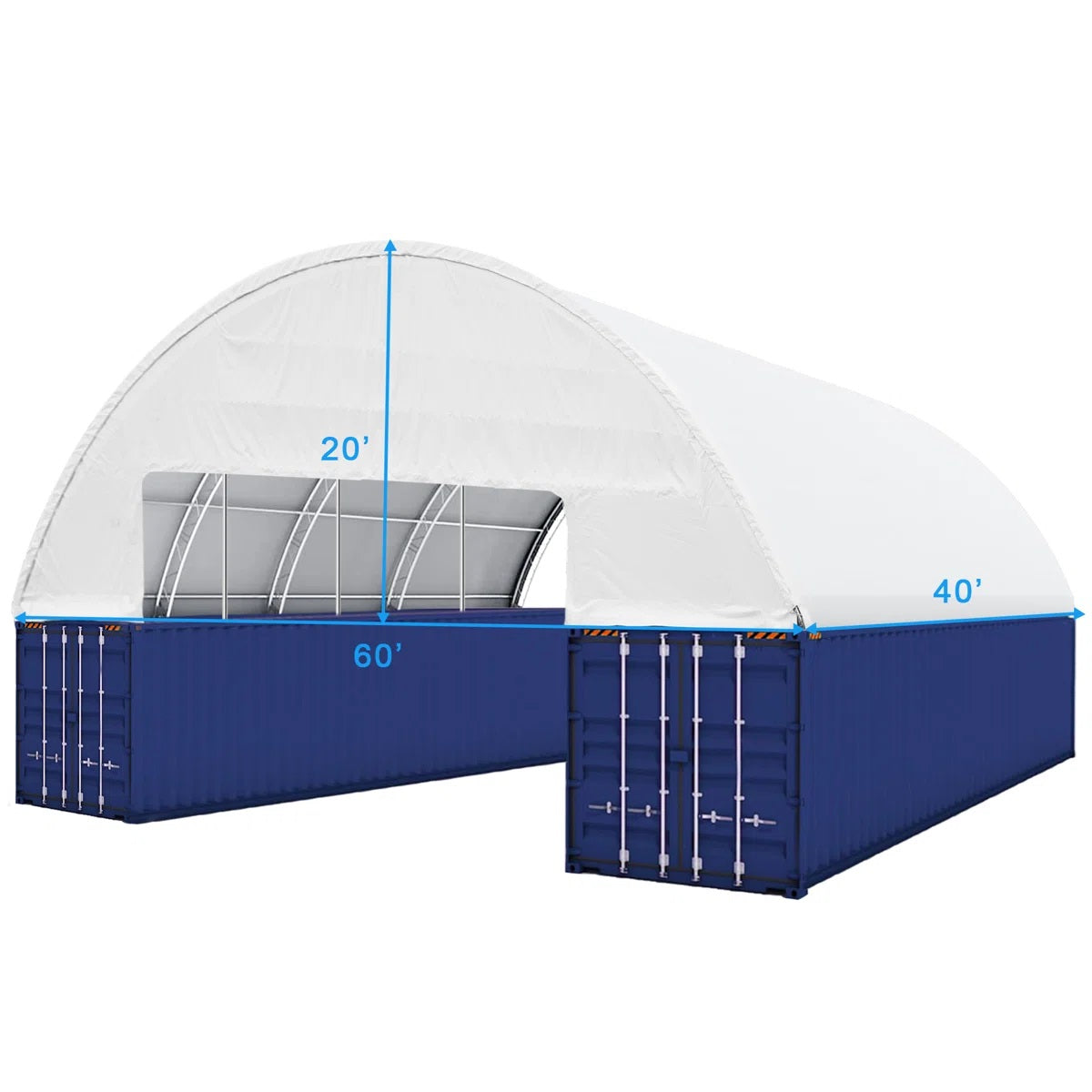

    Measures 60 ft (width) × 40 ft (depth) × 20 ft (height), providing expansive covered space.
    The interior height reaches approximately 19' 10", offering ample vertical clearance.

  • Fabric Membrane
    Covered with 22 oz PVC tarpaulin—waterproof, UV-resistant, fire-retardant, self-cleaning, PFAS-free, and EU REACH-compliant.

  • Environmental Performance
    Rated to withstand:

    • Snow load: 52 lbs/ft²

    • Wind speed: Up to 56 mph

    • Safe at temperatures from –22°F to +158°F

  • Installation & Life Expectancy
    Features pipe and ratchet tie-down tensioning with twist-lock and clamp assembly for smoother installation. For a typical DIY team of 4, setup takes around 2 days, plus 0.5 day per optional front/back wall.

    • Tarp lifespan: 7–10 years

    • Frame lifespan: 15+ years

    • Warranty: 2 years for PE variants, 8 years for PVC

Summary Highlights

Feature Details
Size 60' × 40' × 20' (approx.)
Material Galvanized steel frame, heavy-duty 22 oz PVC cover
Durability Snow: 52 lb/ft² • Wind: 56 mph • Temp range: –22°F to +158°F
Setup Time ~2 days (DIY team) with quick assembly options
Longevity & Warranty Tarp: 7–10 yrs, Frame: 15+ yrs; No less than 8 yrs warranty on PVC
Weight ~4,000–4,200 lbs
